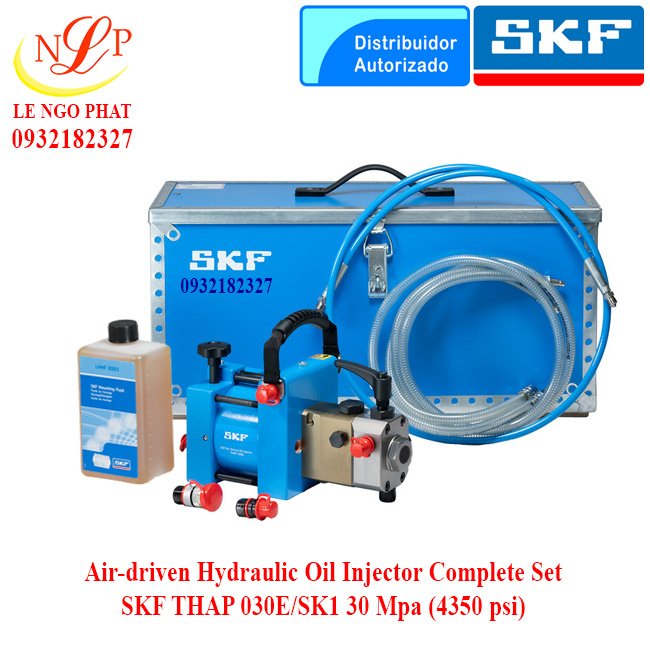

SET CONTENTS THAP 030E/SK1:
| Designation |
Description |
| THAP 030E |
Air driven pump 30 MPa (4 350 psi) |
| 228027 E |
Nipple G 3/4 (m) - G 1/4 (f) |
| 729834 |
Pressure hose (3 m /9.8 ft) |
| 729831 A |
Quick connection coupling |
| 729832 A |
Quick connection nipple |
| |
Set delivered in a wooden carrying case (size 690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in) |
TECHNICAL DATA THAP 030E:
| Designation |
THAP 030E |
| Nominal hydraulic pressure |
30 MPa ( 4 350 psi) |
| Operating air pressure |
7 bar* (102 psi) |
| Air consumption |
200 litre per minute / 7.1 cubic feet per minute |
| Operating temperature range |
0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s |
| Volume/stroke |
10 cm3 (0.61 in.3) |
| Oil outlet |
G3/4 |
| Length |
350 mm (13.9 in.) |
| Height |
202 mm (8 in.) |
| Width |
171mm (6.7 in.) |
| Weight |
11,5 kg (25.3 lb) |
| * Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter. |
SET CONTENTS THAP 030E/SK1:
| Nr. |
Designation |
Description |
| 1 |
THAP 030E |
Air driven pump 30 MPa (4 350 psi) |
| 2 |
228027 E |
Nipple G 3/4 (m) - G 1/4 (f) |
| 3 |
729834 |
Pressure hose (3 m /9.8 ft) |
| 4 |
729831 A |
Quick connection coupling |
| 5 |
729832 A |
Quick connection nipple |
| |
|
Set delivered in a wooden carrying case (size 690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in) |
ACCESSORIES THAP 030E:
| Designation |
Description |
| LHMF 300/5 |
Mounting fluid (5 litre) |
| LHDF 900/5 |
Dismounting fluid (5 litre) |
SPARE PARTS THAP 030E:
| Designation |
Description |
| 728245/3A |
Carrying case |
| THAP E-2 |
Set of hoses |
| THAP E-3 |
Air valve assembly |
| THAP E-4 |
Air inlet block |
| THAP E-5 |
Air motor assembly |
| THAP E-6 |
Oil inlet block |
| THAP 030 E-7 |
Oil injector assembly |
| THAP E-8 |
Release valve assembly |
| THAP E-9 |
Connection nipple assembly |
| THAP 030 E-10 |
Repair kit |
| THAP E-11 |
Gauge plug assembly |
| THAP E-12 |
Carrying handle |
TECHNICAL DATA THAP 030E:
| Designation |
THAP 030E |
| Nominal hydraulic pressure |
30 MPa ( 4 350 psi) |
| Operating air pressure |
7 bar* (102 psi) |
| Air consumption |
200 litre per minute / 7.1 cubic feet per minute |
| Operating temperature range |
0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s |
| Volume/stroke |
10 cm3 (0.61 in.3) |
| Oil outlet |
G3/4 |
| Length |
350 mm (13.9 in.) |
| Height |
202 mm (8 in.) |
| Width |
171mm (6.7 in.) |
| Weight |
11,5 kg (25.3 lb) |
| * Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter. |
SET CONTENTS THAP 030E/SK1:
| Nr. |
Designation |
Description |
| 1 |
THAP 030E |
Air driven pump 30 MPa (4 350 psi) |
| 2 |
228027 E |
Nipple G 3/4 (m) - G 1/4 (f) |
| 3 |
729834 |
Pressure hose (3 m /9.8 ft) |
| 4 |
729831 A |
Quick connection coupling |
| 5 |
729832 A |
Quick connection nipple |
| |
|
Set delivered in a wooden carrying case (size 690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in) |
ACCESSORIES THAP 030E:
| Designation |
Description |
| LHMF 300/5 |
Mounting fluid (5 litre) |
| LHDF 900/5 |
Dismounting fluid (5 litre) |
SPARE PARTS THAP 030E:
| Designation |
Description |
| 728245/3A |
Carrying case |
| THAP E-2 |
Set of hoses |
| THAP E-3 |
Air valve assembly |
| THAP E-4 |
Air inlet block |
| THAP E-5 |
Air motor assembly |
| THAP E-6 |
Oil inlet block |
| THAP 030 E-7 |
Oil injector assembly |
| THAP E-8 |
Release valve assembly |
| THAP E-9 |
Connection nipple assembly |
| THAP 030 E-10 |
Repair kit |
| THAP E-11 |
Gauge plug assembly |
| THAP E-12 |
Carrying handle |
