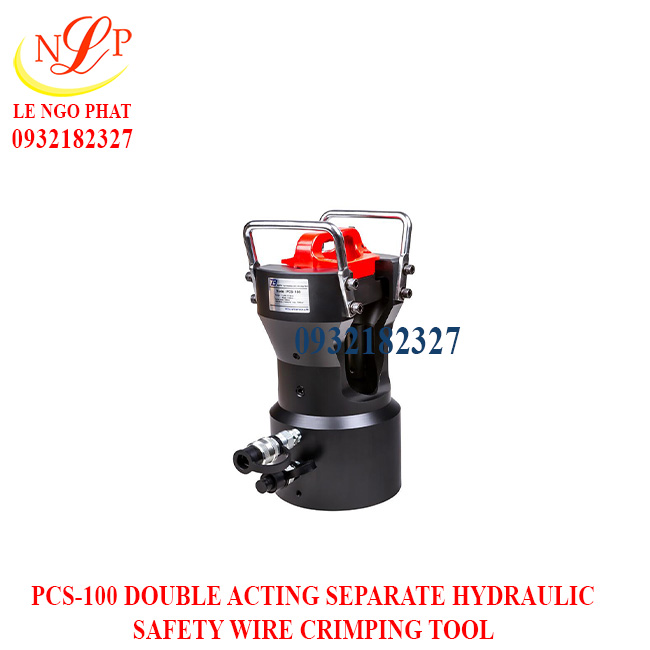

Output force: 100T
Rated pressure: 700bar
Crimping capacity:
ACSR 120-1000mm ²
Max diameter (Cu/Al)76 mm
Max steel sleeveΦ36mm
Main crimping range: 400-800 mm²
Weight :31kg
Packing: Steel Case
Technical Data:
Output force |
100T |
Rated pressure |
700bar |
Crimping capacity |
ACSR 120-1000mm ² |
Max diameter (Cu/Al)76 mm |
|
Max steel sleeveΦ36mm |
|
Main crimping range |
400-800 mm² |
Weight |
31kg |
Packing |
Steel Case |
Features:
1. To crimp the overhead line ACSR, its over tension resistant splicing sleeves
for 110KV and underground cable sleeve for 220KV
2. Double action hydraulic cylinder make piston recovery in short time
3. Simple design for easy maintenance
4. Double action pump required
5. Quick coupling for easy disassembly
