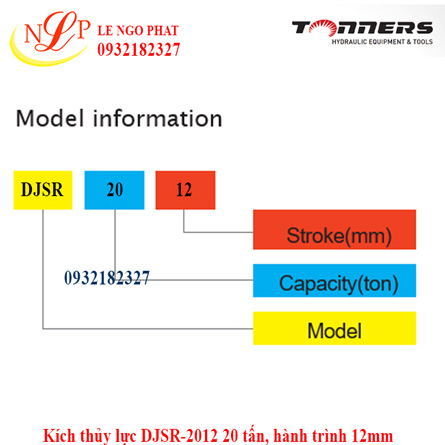

Model No. |
Cylinder Capacity (ton) |
Stroke (mm) |
Cylinder Effective Area (cm2) |

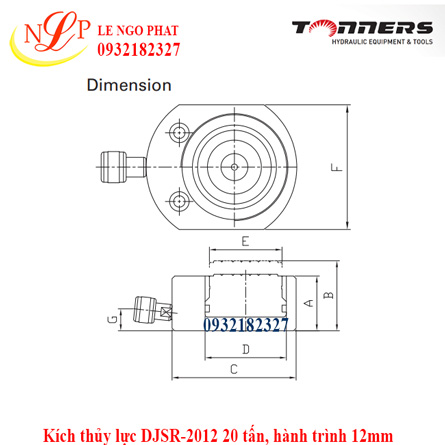

Retracted Height A |
Extended Height B |
Cylinder Out Dia C |
Cylinder In Dia D |
Piston Rod Dia E |
Safety Length F |
Coupler Height G |
Weight (kg) |
DJSR-1010 |
10 |
10 |
15.2 |
54 |
64 |
82 |
44 |
35 |
55 |
15 |
1.6 |
DJSR-2012 |
20 |
12 |
28.3 |
52 |
64 |
100 |
60 |
50 |
76 |
16 |
2.6 |
DJSR-3013 |
30 |
13 |
44.2 |
59 |
72 |
115 |
75 |
64 |
94 |
17 |
4 |
DJSR-5015 |
50 |
15 |
70.9 |
66 |
81 |
145 |
95 |
85 |
120 |
20 |
7.2 |
DJSR-10015 |
100 |
15 |
143.1 |
85 |
100 |
187 |
135 |
105 |
162 |
25 |
12 |
