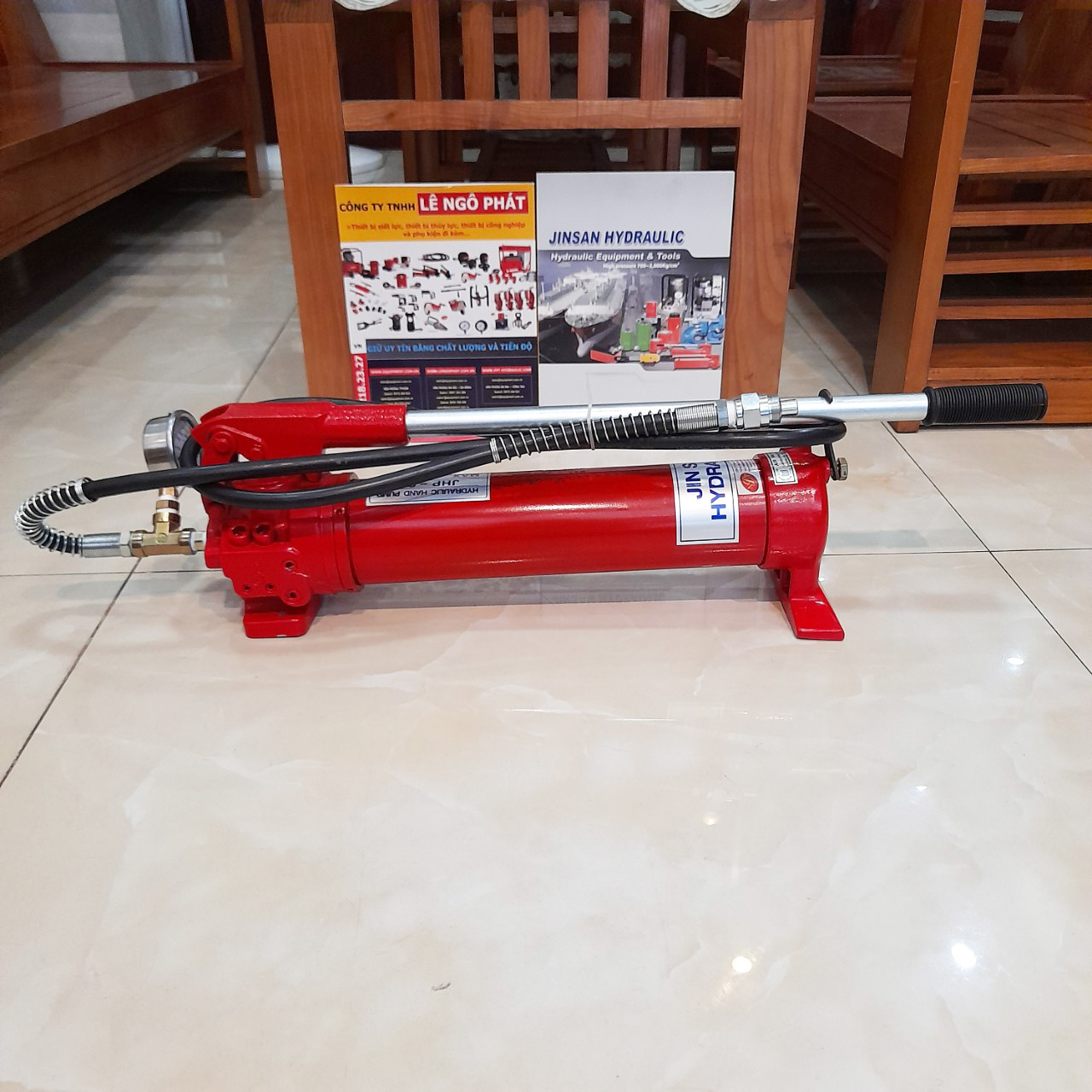

JHP-2B, Bơm tay thủy lực 700 bar, 2.3 lít

Model JHP-2B

Bơm tay thủy lực 1 chiều
Áp suất làm việc tối đa 700 bar
Thể tích bình dầu sử dụng 2.3 lít
Bơm tay 2 lưu lượng dầu.
Lưu lượng giai đoạn 1 (0 - 20Bar): 31ml/ 1 chu kỳ bơm (31cc/ 1 chu kỳ bơm)
Lưu lượng giai đoạn 2 (20 - 700Bar): 2.3ml/ 1 chu kỳ bơm (2.3cc/ 1 chu kỳ bơm)
Tích hợp sẵn ống dây thủy lực dài 1.8m và đầu nối nhanh đực (male coupler)
Tích hợp sẵn đồng hồ đo áp suất 0-1000Bar (đồng hồ có đạt tiêu chuẩn để kiểm định)
Trọng lượng: 10.5Kg

Chứng nhận xuất xứ hàng hóa (CO) do phòng thương mại và công nghiệp Korea cấp
Chứng nhận chất lượng sản phẩm (CQ) do nhà sản xuất cấp
Xuất xứ: JHS-Korea

Giá: 0932182327

Mã sản phẩm: BƠM TAY THỦY LỰC 700BAR

Model: JHP-2B

HYDRAULIC HAND PUMPS
Jinsan JHP-Series Hand-operated hydraulic pump
JHP-Series pumps operates the ram’s forward movement and backward movement in the fastest way. Also, it supplies 2-flows from high pressure and low pressure. So it is worked by 2-speed automatically. Safety valves for high pressure and low pressure are equipped inside of pump. When pump reaches at the maximum point of low pressure, it will be changed to high pressure automatically and be raised from 700kg/cm2 up to 1500kg/cm2

JH-2B, HAND-OPERATED PUMPS
JHP-2B
700kg/cm2

This is suitable for where the ram flanger should move fast and a large amount of oil is required. With the 4-way valve, the automatic dual speed pump can be applied to any single or double acting ram with a capacity of up to 50 tons.

- Used in a place where JHP-2B is required to move ram plunger more rapid and supply suggicient volume of oil.
- Automatic 2-speed pump with 4way valve has been applied for 50ton single acting and double acting ram.

Specification


MODEL RESERVOIR
CAPCCITY ( CC )
PRESSURE RATE
( Kg/cm2)
VOLUME OER STROCK
(CC)
WEIGHT
(Kg)
HIGH PRESSURE LOW PRESSURE LOW PRESSURE HIGH PRESSURE
JHP-1BAL 1000 700 20 13 2.3 4.7
JHP-1B 800 700 20 13 2.3 6
JHP-2A 2000 700 20 13 2.3 7.3
JHP-2B 2300 700 20 31 2.3 10.5
JHP-3A 3000 700 20 31 2.3 13.5
JHP-3B 10000 700 20 90 7 50

It can be used with the single acting ram where the ram flanger should move faster and a large amount of oil is required.
With the 4-way valve, it can be applied to any double acting ram with a capacity of over 300 tons.
- One of the most popular pumps used in the common industrial field.
- This automatic double pump has the performance to supply the large oil for the advance and retract of ram plunger

HAND PUMP

  • Maximum Pressure : 700kgf/cm2
  • Oil Capacity : To use 30% more then cylinder oil

GAUGE BLOCK

  • Used for attaching gauges to hydraulic system

PRESSURE GAUGE

  • Size : Face Dia. 64mm & 100mm

HYDRAULIC HOSE

  • Maximum Pressure : 700kgf/cm2
  • Shorter length recommended
  • Standard length is 1.8m

QUICK COUPLER

  • 3/8” Ball Type Male Coupler

HYDRAULIC OIL

  • Oil density : Warm Area : #10
                        Cold Area : #30

Từ khóa: bơm thủy lực, bơm tay thủy lực, bơm thủy lực 700Bar, bơm tay thủy lực 700Bar, bơm thủy lực JHS, bơm tay thủy lực JHS, bơm thủy lực JHS Korea, bơm tay thủy lực JHS Korea, bơm thủy lực Korea, bơm tay thủy lực Korea, JHP-1BALJHP-1BJHP-2AJHP-2BJHP-3AJHP-3B

HYDRAULIC HAND PUMPS
Jinsan JHP-Series Hand-operated hydraulic pump
JHP-Series pumps operates the ram’s forward movement and backward movement in the fastest way. Also, it supplies 2-flows from high pressure and low pressure. So it is worked by 2-speed automatically. Safety valves for high pressure and low pressure are equipped inside of pump. When pump reaches at the maximum point of low pressure, it will be changed to high pressure automatically and be raised from 700kg/cm2 up to 1500kg/cm2

JH-2B, HAND-OPERATED PUMPS
JHP-2B
700kg/cm2

This is suitable for where the ram flanger should move fast and a large amount of oil is required. With the 4-way valve, the automatic dual speed pump can be applied to any single or double acting ram with a capacity of up to 50 tons.

- Used in a place where JHP-2B is required to move ram plunger more rapid and supply suggicient volume of oil.
- Automatic 2-speed pump with 4way valve has been applied for 50ton single acting and double acting ram.

Specification


MODEL RESERVOIR
CAPCCITY ( CC )
PRESSURE RATE
( Kg/cm2)
VOLUME OER STROCK
(CC)
WEIGHT
(Kg)
HIGH PRESSURE LOW PRESSURE LOW PRESSURE HIGH PRESSURE
JHP-1BAL 1000 700 20 13 2.3 4.7
JHP-1B 800 700 20 13 2.3 6
JHP-2A 2000 700 20 13 2.3 7.3
JHP-2B 2300 700 20 31 2.3 10.5
JHP-3A 3000 700 20 31 2.3 13.5
JHP-3B 10000 700 20 90 7 50

It can be used with the single acting ram where the ram flanger should move faster and a large amount of oil is required.
With the 4-way valve, it can be applied to any double acting ram with a capacity of over 300 tons.
- One of the most popular pumps used in the common industrial field.
- This automatic double pump has the performance to supply the large oil for the advance and retract of ram plunger

HAND PUMP

  • Maximum Pressure : 700kgf/cm2
  • Oil Capacity : To use 30% more then cylinder oil

GAUGE BLOCK

  • Used for attaching gauges to hydraulic system

PRESSURE GAUGE

  • Size : Face Dia. 64mm & 100mm

HYDRAULIC HOSE

  • Maximum Pressure : 700kgf/cm2
  • Shorter length recommended
  • Standard length is 1.8m

QUICK COUPLER

  • 3/8” Ball Type Male Coupler

HYDRAULIC OIL

  • Oil density : Warm Area : #10
                        Cold Area : #30

Từ khóa: bơm thủy lực, bơm tay thủy lực, bơm thủy lực 700Bar, bơm tay thủy lực 700Bar, bơm thủy lực JHS, bơm tay thủy lực JHS, bơm thủy lực JHS Korea, bơm tay thủy lực JHS Korea, bơm thủy lực Korea, bơm tay thủy lực Korea, JHP-1BALJHP-1BJHP-2AJHP-2BJHP-3AJHP-3B

Chứng nhận xuất xứ hàng hóa (CO) do phòng thương mại và công nghiệp Korea cấp
Chứng nhận chất lượng sản phẩm (CQ) do nhà sản xuất cấp
Xuất xứ: JHS-Korea
