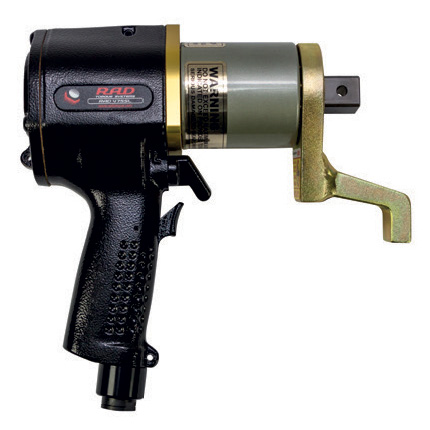

SÚNG SIẾT BULONG BẰNG KHÍ NÉN

SINGLE & 2-SPEED PNEUMATIC SERIES:

Torque range: 35 – 15.000 Nm

Extreme duty torque wrenches for heavy duty applications!

RAD torque wrenches incorporate a precision engineered high speed gearbox designed for faster run down and quick reaction point positioning on time sensitive bolting applications.

Over twenty years of experience in gearbox engineering and design has brought about RAD’s latest generation in planetary gearboxes. Designed for extreme duty use in a variety of industries worldwide, RAD pneumatic torque wrenches offer:

Smooth continuous flow of controlled torque eliminating destructive hammering
Cast aluminium housing
The best power-to-weight ratio
Wide torque range to suit multiple applications
Unmatched reliability delivered by one of the most advanced engineered gear boxes on the market
Very compact design resulting in lower weight and better accessibility
Full automatic gearbox (2-speed only)
Unique full automatic gearbox design, eliminating the time manual switch between high and low speed gear (2-speed only)
Controlled bolting – repeatability of +/- 3%
Extremely low noise level – only 80 dB
Optional:
- Double safety trigger to prevent pinching risk
- ATEX.

PNEUMiconsEX

All RAD Pneumatic tools include:

Reaction arm and retaining ring
3.6 meter hose
Lightweight (2 Kg) FRL unit with toolholder, made from High Density Polypropylene and includes pressure gauge, filter, regulator and oiler
Lubricating oil for the FRL unit
User manual
Calibration certificate
Safety instruction on USB stick

Part No.	Model	Square drive	Torque range	RPM	Weight	Dim. A	Dim. B	Dim. C	Dim. D
15616	100 SL	¾" or ½"	35 - 100 Nm	275	2,1 Kg	161 mm	60 mm	69 mm	222 mm
15134	275 SL	¾"	50 - 275 Nm	90	2,2 Kg	167 mm	60 mm	69 mm	222 mm
13573	475 SL	¾"	70 - 475 Nm	65	2,4 Kg	167 mm	60 mm	69 mm	222 mm
13575	475 SL-2	¾"	70 - 475 Nm	270	3,7 Kg	228 mm	60 mm	69 mm	222 mm
13539	10 GX	¾"	150 - 950 Nm	30	3,4 Kg	228 mm	63 mm	69 mm	228 mm
13549	14 GX	¾"	275 - 1.350 Nm	20	3,6 Kg	228 mm	63 mm	69 mm	228 mm
19774	14 GX-2	¾"	275 - 1.350 Nm	85	4,5 Kg	262 mm	63 mm	69 mm	205 mm
19135	20 DX	1"	400 - 2.000 Nm	9	3,9 Kg	203 mm	69 mm	69 mm	205 mm
19775	20 DX-2	1"	400 - 2.000 Nm	50	4,8 Kg	250 mm	69 mm	69 mm	205 mm
13565	34 GX	1"	700 - 3.400 Nm	9	6,1 Kg	246 mm	77 mm	83 mm	241 mm
19776	34 GX-2	1"	700 - 3.400 Nm	44	7,6 Kg	305 mm	77 mm	83 mm	241 mm
24717	40 DX	1"	1.200 - 4.000 Nm	8	6,6 Kg	230 mm	86 mm	83 mm	264 mm
24952	40 DX-2	1"	1.200 - 4.000 Nm	49	7,3 Kg	309 mm	81 mm	83 mm	241 mm
13571	46 GX	1"	1.400 - 4.600 Nm	12	9,0 Kg	325 mm	86 mm	93 mm	264 mm
26133	70 DX	1½"	2.000 - 7.000 Nm	8	10,7 Kg	285 mm	92 mm	93 mm	264 mm
15805	80 DX	1½"	2.700 - 8.000 Nm	7	12,5 Kg	348 mm	101 mm	101 mm	277 mm
23229	110 DX	1½"	3.400 - 10.800 Nm	4	13,8 Kg	431 mm	114 mm	114 mm	279 mm
26153	150 DX	1½"	5.400 - 15.000 Nm	3	19,1 Kg	353 mm	127 mm	127 mm	281 mm

Air consumption:

Part No.	Model	Air motor	At 6,7 Bar	At 100 PSI
15616	100 SL	NPW 120	792 LPM	28 CFM
15134	275 SL	NPW 120	792 LPM	28 CFM
13573	475 SL	NPW 120	792 LPM	28 CFM
13575	475 SL-2	NPW 120	792 LPM	28 CFM
13539	10 GX	NPW 120	792 LPM	28 CFM
13549	14 GX	NPW 120	792 LPM	28 CFM
19774	14 GX-2	NPW 120	792 LPM	28 CFM
19135	20 DX	NPW 120	792 LPM	28 CFM
19775	20 DX-2	NPW 120	792 LPM	28 CFM
13565	34 GX	NPW 180	1130 LPM	40 CFM
19776	34 DX-2	NPW 180	1130 LPM	40 CFM
24717	40 DX	NPW 180	1130 LPM	40 CFM
24952	40 DX-2	NPW 180	1130 LPM	40 CFM
13571	46 GX	NPW 200	1727 LPM	61 CFM
26133	70 DX	NPW 200	1727 LPM	61 CFM
15805	80 DX	NPW 200	1727 LPM	61 CFM
23229	110 DX	NPW 200	1727 LPM	61 CFM
26153	150 DX	NPW 200	1727 LPM	61 CFM
