Tubing HP Tubing Stainless Steel 60k psi

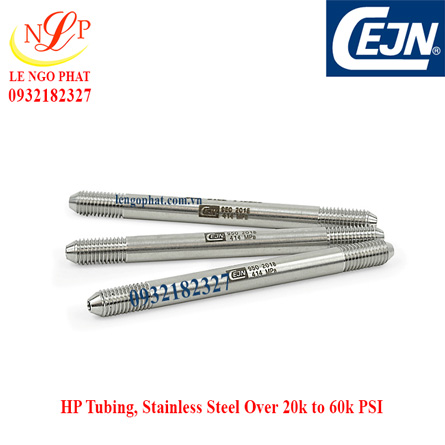

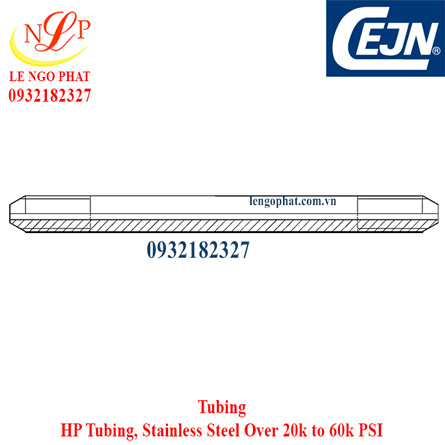

HP Tubing, Stainless Steel
HP (Over 20k to 60k PSI)Tubing
Industry standard tubes in 1/4", 3/8" and 9/16" sizes. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.
| HP Tubing, Stainless Steel (Over 20k to 60k PSI) | ||||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) | Connection 1 | Connection 2 |
| 199502018 | Tubing | HP 1/4" tube 3" | 6.35 mm (1/4") | 1/4" | 1/4" | |||
| 199502019 | Tubing | HP 1/4" tube 6" | 6" (152.40 mm) | 6.35 mm (1/4") | 2.2 mm | 34 Nm | - | 3/8" |
| 199502020 | Tubing | HP 3/8" tube 3" | 3" (76.20 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502021 | Tubing | HP 3/8" tube 4" | 4" (101.60 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502022 | Tubing | HP 9/16" tube 4" | 4" (101.60 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
| 199502023 | Tubing | HP 9/16" tube 6" | 6" (152.40 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
| HP Tubing, Stainless Steel (Over 20k to 60k PSI) | ||||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) | Connection 1 | Connection 2 |
| 199502018 | Tubing | HP 1/4" tube 3" | 6.35 mm (1/4") | 1/4" | 1/4" | |||
| 199502019 | Tubing | HP 1/4" tube 6" | 6" (152.40 mm) | 6.35 mm (1/4") | 2.2 mm | 34 Nm | - | 3/8" |
| 199502020 | Tubing | HP 3/8" tube 3" | 3" (76.20 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502021 | Tubing | HP 3/8" tube 4" | 4" (101.60 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502022 | Tubing | HP 9/16" tube 4" | 4" (101.60 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
| 199502023 | Tubing | HP 9/16" tube 6" | 6" (152.40 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
| HP Tubing, Stainless Steel (Over 20k to 60k PSI) | ||||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) | Connection 1 | Connection 2 |
| 199502018 | Tubing | HP 1/4" tube 3" | 6.35 mm (1/4") | 1/4" | 1/4" | |||
| 199502019 | Tubing | HP 1/4" tube 6" | 6" (152.40 mm) | 6.35 mm (1/4") | 2.2 mm | 34 Nm | - | 3/8" |
| 199502020 | Tubing | HP 3/8" tube 3" | 3" (76.20 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502021 | Tubing | HP 3/8" tube 4" | 4" (101.60 mm) | 9.52 mm (3/8") | 3.2 mm | 68 Nm | 3/8" | 3/8" |
| 199502022 | Tubing | HP 9/16" tube 4" | 4" (101.60 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
| 199502023 | Tubing | HP 9/16" tube 6" | 6" (152.40 mm) | 14.28 mm (9/16") | 4.8 mm | 150 Nm | - | - |
