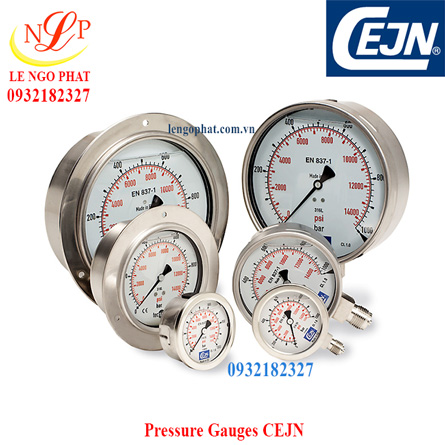

Bottom and panel mounted pressure gauges in models up to 5500 bar (550 MPa). All models are glycerine filled for improved performance and long life. The gauges are made of stainless steel and feature high accuracy and a long service life
Giá: 0932182327 Mã sản phẩm: Pressure Gauges Model: CEJN - Made in Sweden
Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
bar and PSI or MPa
IP 65
Filled with 98% glycerine.
Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale.
15°C — +65°C (59°F — +149°F)
Ø 100 and 150 mm manufactured in accordance with EN 837-1. Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket around the face of the gauge.

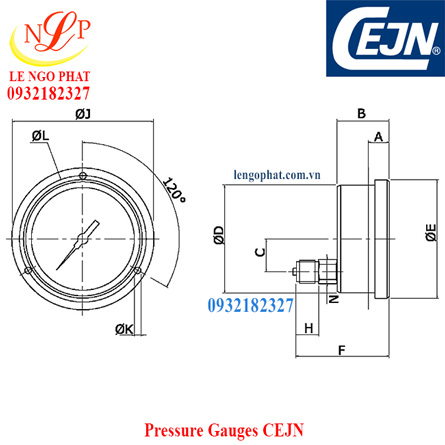

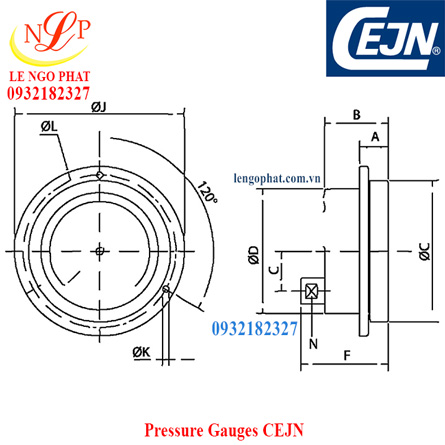

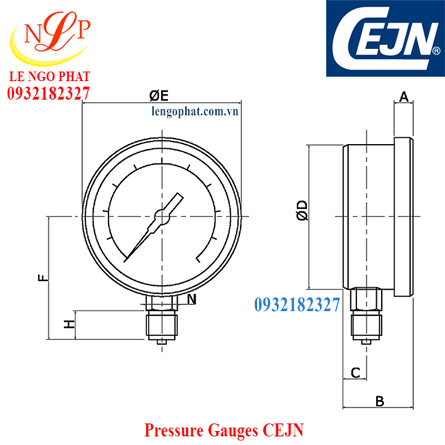

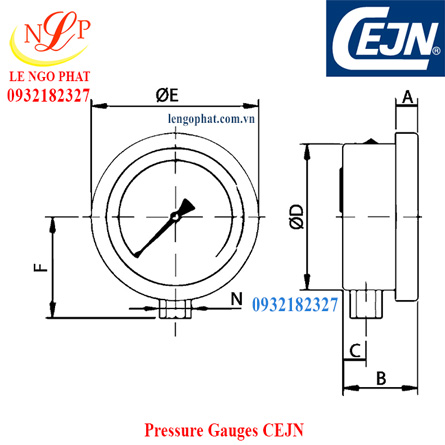

Pressure Gauges 100mm CEJN
Part No.
Category
Description Class
Connection
Scale max working pressure
A
B
C
D
E
F
H
J
K
L
N
199403120
Ø 100 mm
Bottom connection Male thread
G 1/2"
1000 bar (14503 PSI)
13 mm
48.6 mm
15 mm
101 mm
110.6 mm
86 mm
20 mm
- mm
- mm
- mm
22 mm
199403121
Ø 100 mm
Bottom connection Male thread
G 1/2"
1600 bar (23206 PSI)
13 mm
48.6 mm
15 mm
101 mm
110.6 mm
86 mm
20 mm
- mm
- mm
- mm
22 mm
199403122
Ø 100 mm
Bottom connection Male thread
G 1/2"
2000 bar (29007 PSI)
13 mm
48.6 mm
15 mm
101 mm
110.6 mm
86 mm
20 mm
- mm
- mm
- mm
22 mm
199403140
Ø 100 mm
Bottom connection Male thread
1/2" NPT
1000 bar (14503 PSI)
13 mm
48.6 mm
15 mm
101 mm
110.6 mm
86 mm
20 mm
- mm
- mm
- mm
22 mm
199403153
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
3000 bar (43511 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403154
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
4000 bar (58015 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403155
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
5500 bar (79770 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403173
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
3000 bar (43511 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403174
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
4000 bar (58015 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403175
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
5500 bar (79770 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403253
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
3000 bar (43511 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403254
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
4000 bar (58015 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403255
Ø 100 mm
Bottom connection Female thread
M16 x 1.5
5500 bar (79770 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403273
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
3000 bar (43511 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403274
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
4000 bar (58015 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403275
Ø 100 mm
Bottom connection Female thread
9/16"-18 UNF
5500 bar (79770 PSI)
15 mm
50 mm
15 mm
103 mm
117 mm
71 mm
22 mm
199403320
Ø 100 mm
Panel mounting Male thread
G 1/2"
1000 bar (14503 PSI)
20 mm
48.6 mm
31 mm
101 mm
110.6 mm
81.5 mm
20 mm
132 mm
6 mm
118 mm
22 mm
199403321
Ø 100 mm
Panel mounting Male thread
G 1/2"
1600 bar (23206 PSI)
20 mm
48.6 mm
31 mm
101 mm
110.6 mm
81.5 mm
20 mm
132 mm
6 mm
118 mm
22 mm
199403322
Ø 100 mm
Panel mounting Male thread
G 1/2"
2000 bar (29007 PSI)
20 mm
48.6 mm
31 mm
101 mm
110.6 mm
81.5 mm
20 mm
132 mm
6 mm
118 mm
22 mm
199403353
Ø 100 mm
Panel mounting Female thread
M16 x 1.5
3000 bar (43511 PSI)
24 mm
50 mm
33 mm
103 mm
117 mm
69 mm
141 mm
5 mm
126 mm
17 mm
199403354
Ø 100 mm
Panel mounting Female thread
M16 x 1.5
4000 bar (58015 PSI)
24 mm
50 mm
33 mm
103 mm
117 mm
69 mm
141 mm
5 mm
126 mm
17 mm
199403355
Ø 100 mm
Panel mounting Female thread
M16 x 1.5
5500 bar (79770 PSI)
24 mm
50 mm
33 mm
103 mm
117 mm
69 mm
141 mm
5 mm
126 mm
17 mm
199403373
Ø 100 mm
Panel mounting Female thread
9/16"-18
Max rec. working pressure
Material
Units
Protection class
Liquid
Accuracy
Temperature range
Miscellaneous
75% of the full scale range.
Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
bar and PSI or MPa
IP 65
Filled with 98% glycerine.
Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale.
15°C — +65°C (59°F — +149°F)
Ø 100 and 150 mm manufactured in accordance with EN 837-1. Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket around the face of the gauge.
