Milling Machines

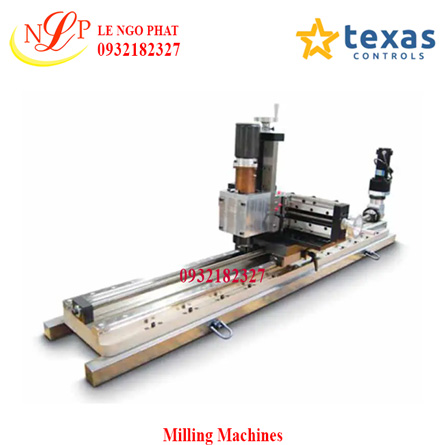

The “3 Axis” Portable Milling Machine is our most versatile and accurate milling tool, capable of traveling and machining in all axis (XYZ).3 Axis is ideal for onsite machining large and small rectangular areas accurately. This portable mill can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position it in difficult work area conditions. Any machinist familiar with machining practices will find the 3 Axis simple to setup and operate, even upside down.

This tool is designed for rugged onsite machining e.g. milling, drilling and boring applications on jobs previously thought to be impossible without extensive disassembly. The precision ground dovetails with adjustable gibs, to provide smooth, accurate travel in all axis.

When used as a facing mill, this milling machine tool will quickly face off pitted or misaligned surfaces, restoring the original condition of the part being machined. Servo power feeds are available for all axis, allowing the application of smooth and consistent power feed throughout the speed range, going forwards and in reverse.

The Mini-Mill is capable of travelling and machining in all axes (XYZ). The lightweight, economical and highly portable Mini-Mill is ideal for onsite machining small areas accurately.

The Mini-Mill can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position it for difficult work area conditions. Any machinist familiar with machining practices will find the Mini-Mill simple to set up and operate, even upside down. The Mini-Mill has 4″ of “X” travel, 3″ of “Y” travel and 2″ of “Z” travel and accepts end mill shanks of 3/4″ diameter.

The air motor powered Mini-Mill is designed for rugged onsite machining such as milling, drilling and boring applications on jobs previously thought to be impossible without extensive disassembly. The adjustable gibs provide smooth, accurate travel in all axes.

The mounting brackets consist of three major pieces for secure and flexible mounting. The Mini-Mill’s product kit components include the complete machine with an air motor, air caddy, deadman handle, tool kit, and storage box. Portable, economical and powerful, the Mini-Mill can be customised for a variety of applications

The “3 Axis” Portable Milling Machine is our most versatile and accurate milling tool, capable of traveling and machining in all axis (XYZ).3 Axis is ideal for onsite machining large and small rectangular areas accurately. This portable mill can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position it in difficult work area conditions. Any machinist familiar with machining practices will find the 3 Axis simple to setup and operate, even upside down.

This tool is designed for rugged onsite machining e.g. milling, drilling and boring applications on jobs previously thought to be impossible without extensive disassembly. The precision ground dovetails with adjustable gibs, to provide smooth, accurate travel in all axis.

When used as a facing mill, this milling machine tool will quickly face off pitted or misaligned surfaces, restoring the original condition of the part being machined. Servo power feeds are available for all axis, allowing the application of smooth and consistent power feed throughout the speed range, going forwards and in reverse.

The Mini-Mill is capable of travelling and machining in all axes (XYZ). The lightweight, economical and highly portable Mini-Mill is ideal for onsite machining small areas accurately.

The Mini-Mill can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position it for difficult work area conditions. Any machinist familiar with machining practices will find the Mini-Mill simple to set up and operate, even upside down. The Mini-Mill has 4″ of “X” travel, 3″ of “Y” travel and 2″ of “Z” travel and accepts end mill shanks of 3/4″ diameter.

The air motor powered Mini-Mill is designed for rugged onsite machining such as milling, drilling and boring applications on jobs previously thought to be impossible without extensive disassembly. The adjustable gibs provide smooth, accurate travel in all axes.

The mounting brackets consist of three major pieces for secure and flexible mounting. The Mini-Mill’s product kit components include the complete machine with an air motor, air caddy, deadman handle, tool kit, and storage box. Portable, economical and powerful, the Mini-Mill can be customised for a variety of applications
