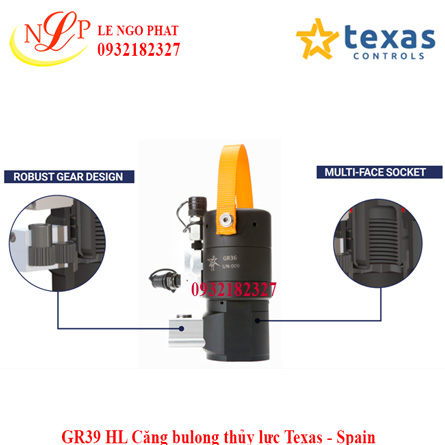

GR39 HL Căng bulong thủy lực Texas - Spain

GR39 HL Căng bulong thủy lực Texas - Spain

MAIN FEATURES
• Max. working pressure 1.350 / 1.400 bar
• Max. stroke 7 / 8 mm - High pressure quick
connect couplings, with no o-rings needed,
ensure better performance.
• Max Stroke indicator.
• Belleville spring return system.
• Metric & special threads are available under
request.
• Proven safety design:
• Positive Stop to reduce the load in case of
overexceed the max stroke.
• Antiprojection system in case of puller failure.

Giá: 0932182327

Mã sản phẩm: GR39 HL

Model: GR39 HL

Model

Stud Size

Max. Pressure

Tool Load Capacity

Hydraulic Pressure Area

Effective

O.D. (A)

Tool Height (H)

Max. Stroke

Stud protrusion over flange (mm)

Complete Tool Weight

Metric bar kN mm2 mm mm mm Min Max kg

GR30	M30	1.350	454,4	3366	84	172,5	8	63	83	6,4
GR33	M33	1.350	564,4	4.181	92	180	8	65	85	7,6
GR36	M36	1.350	672,7	4.983	95	197	8	78	105	8,5
GR39 HL	M39	1.400	798,8	5.706	98	211	8	86	112	9,4
GR42	M42	1.400	910,4	6.503	104	214	7	88	120	11,4

Model

Stud Size

Max. Pressure

Tool Load Capacity

Hydraulic Pressure Area

Effective

O.D. (A)

Tool Height (H)

Max. Stroke

Stud protrusion over flange (mm)

Complete Tool Weight

Metric bar kN mm2 mm mm mm Min Max kg

GR30	M30	1.350	454,4	3366	84	172,5	8	63	83	6,4
GR33	M33	1.350	564,4	4.181	92	180	8	65	85	7,6
GR36	M36	1.350	672,7	4.983	95	197	8	78	105	8,5
GR39 HL	M39	1.400	798,8	5.706	98	211	8	86	112	9,4
GR42	M42	1.400	910,4	6.503	104	214	7	88	120	11,4
